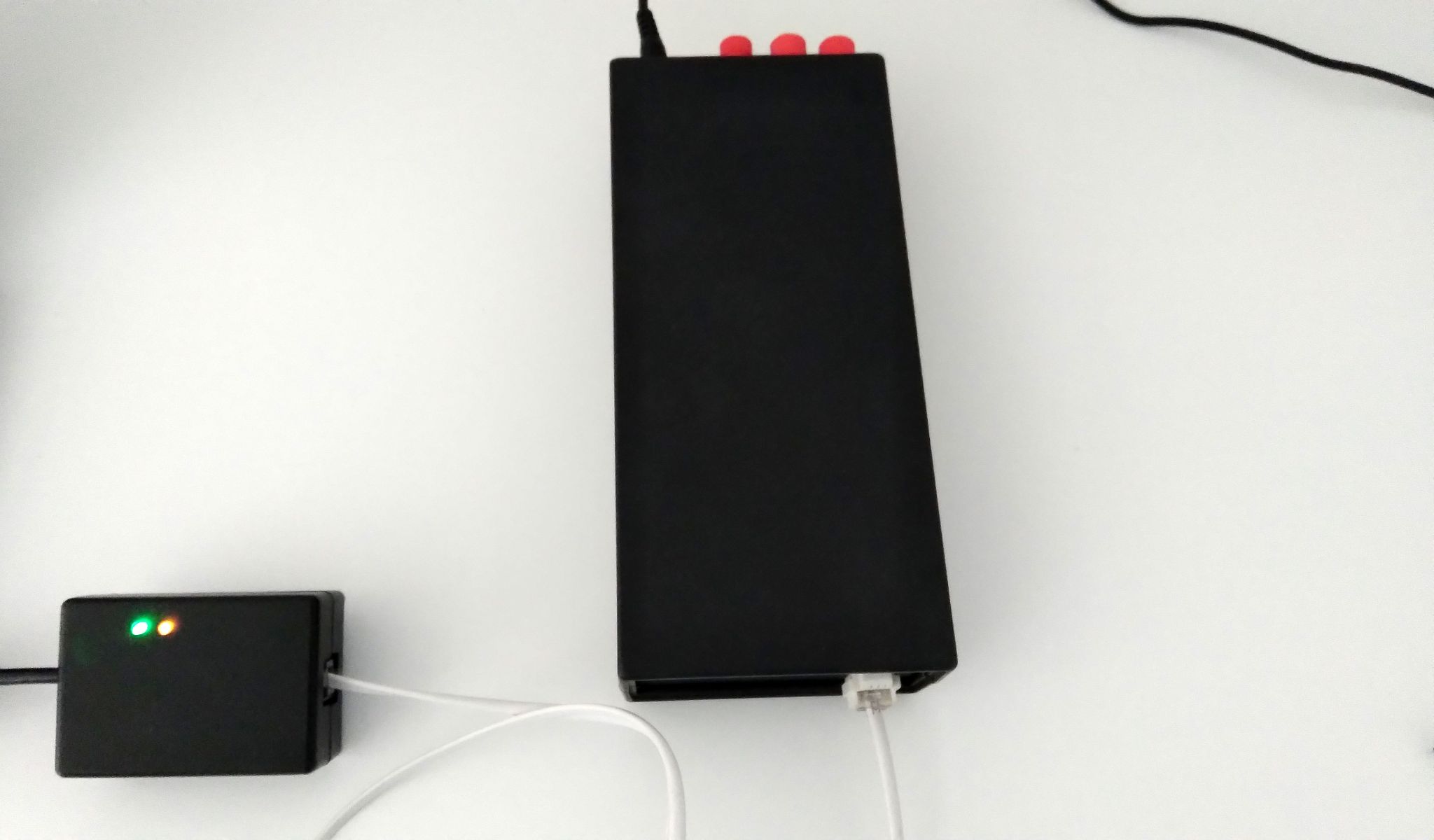

Test system for high-voltage transformers

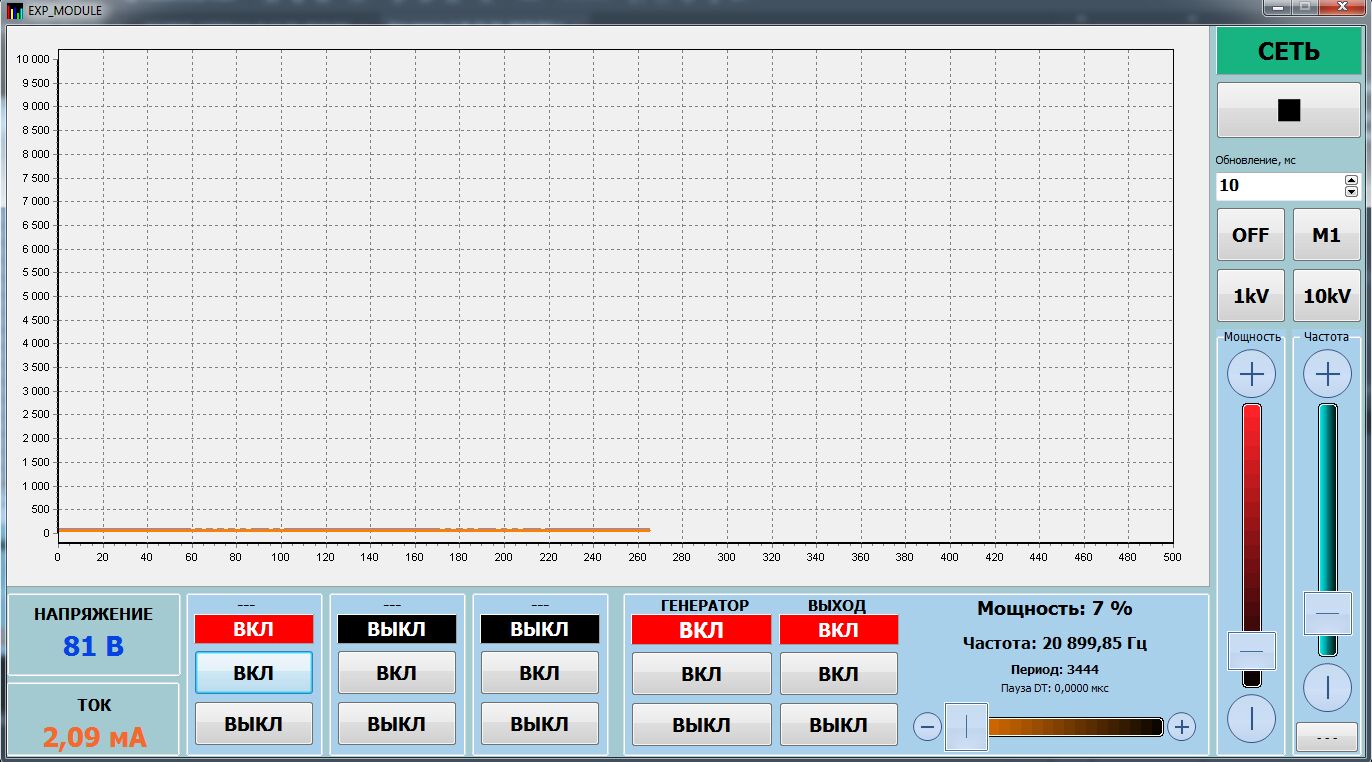

PC based test fixture to check and test HV transformers

Project details

• Platform - STM32F103 + PC
• Connectivity - RS485 with galvanic isolation
• Full/Half bridge mosfet output with selectable freq/duty-cycle/deadtime
• Design For the stock enclosure
• Development environment - SolidWorks, Altium Designer
• Programming: C/C++, Delphi
