Smart watch prototype

Electronics + firmware+ 3D design

Details of the project

• Microcontroller STM32G071
• Power - Li battery with magnetic charger

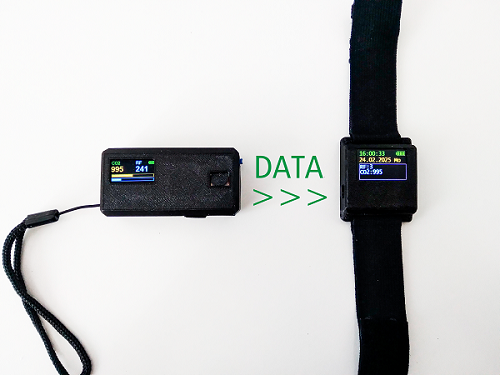

• RF link to additional sensors - nrf24L01+
• LCD IPS 1.14" 135*240 ST7789 with PWM backlight
• SPI flash memory 32Mbit
• Low power design - up to 1 month at 1s period wake-up ADC monitoring
• Magnetic sesor for the position detection
• Internal RF sensor for monitoring EMS

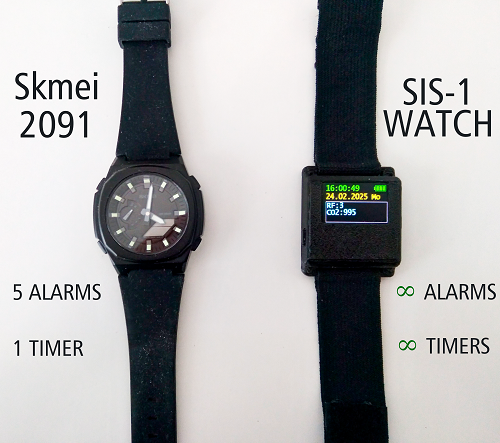

• Silent vibro notification for events and alarms

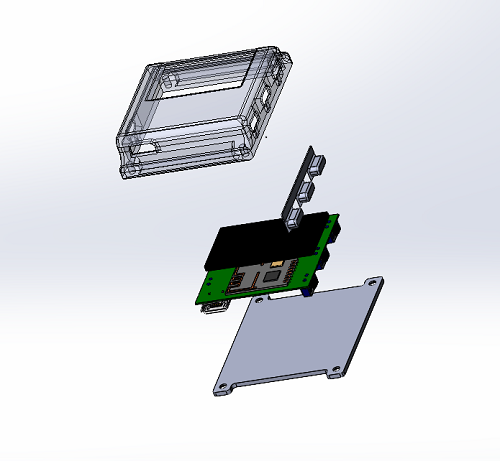

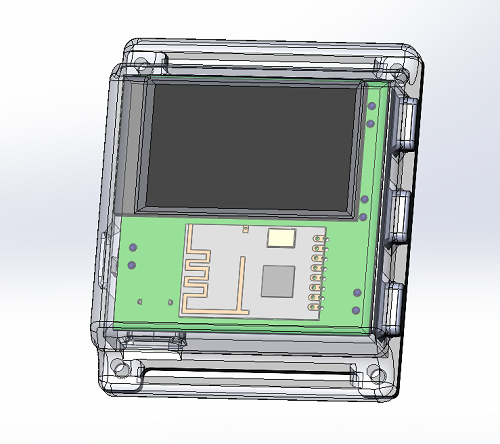

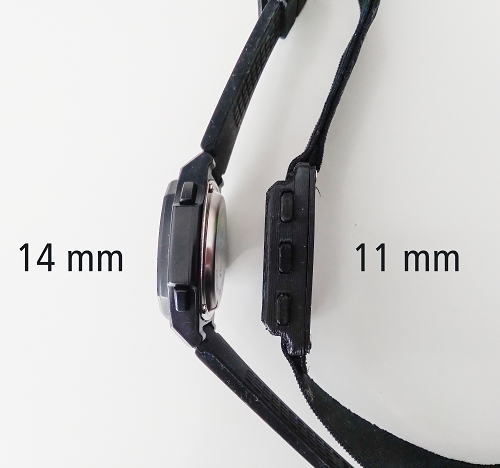

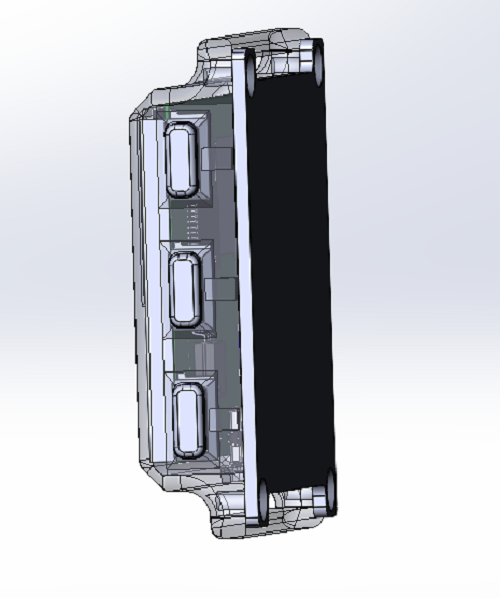

• 3D designed small case with 11mm thickness- SolidWorks/3D printing
